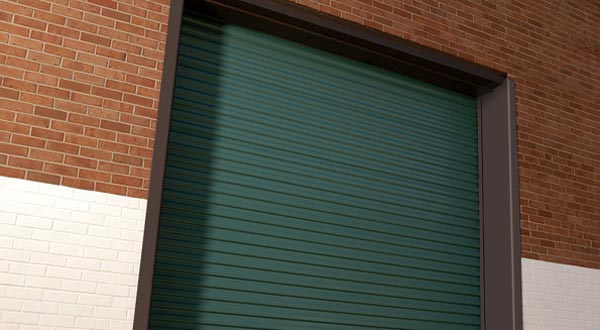

Amarr 5501 Series - Light Duty - Rolling Sheet Commercial Door

Amarr 5501 Series

  • 26-Gauge Galvanized Steel Curtain
  • 9 1/2” Enclosed Barrel
  • Heavy-Duty Mounting Bracket
  • Polypropylene Wear Strips

Product Documents

Product Brochure

pdf icon

Installation Instructions

pdf icon

Warranty

pdf icon
Overview

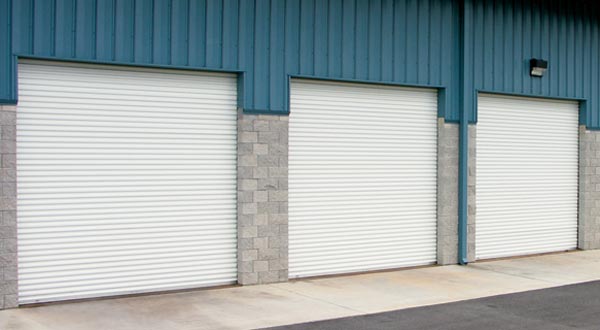

The Amarr light-duty commercial sheet doors 5501, 5401 and 5451 are economical and durable door options for commercial projects that require a good value.  The enclosed barrel assembly allows this door to fit into spaces with low headroom requirements.  Amarr 5401 and 5451 provide extra value with pre-assembled brackets, tensioner, gears and chain drive (on select sizes) for faster installation time.

Specifications Chart

Amarr 5501Amarr 5401Amarr 5451
Door ThicknessN/AN/AN/A
PanelN/AN/AN/A
Duty RatingLight DutyLight DutyLight Duty
MaterialGalvanized SteelGalvanized SteelGalvanized Steel
Material Thickness26 ga26 ga26 ga
Guides16 ga16 ga16 ga
Guide Depth2.3"2.3"2.3"
Drum/Barrel Diameter9.5"9.5"9.5"
Wind Load RatedNoNoYes
WindLock TypeN/AN/ASteel
Pre-assembled FeaturesNoYesYes
Max Std Width12'12'12'
Max Std Height14'14'14'
Limited Paint Finish Warranty25-Year25-Year25-Year
Limited Materials/Workmanship Warranty1 Year1 Year1 Year

Features & Options

Galvalume Steel Bottom Bar with Lift Angle

Galvalume Steel Bottom Bar with Lift Angle

Dual Galvanized Steel Slide Bolt Locks

Dual Galvanized Steel Slide Bolt Locks

Heavy Duty Galvanized Steel Guides Hot Dipped for Maximum Strength and Rust Resistance

Heavy Duty Galvanized Steel Guides Hot Dipped for Maximum Strength and Rust Resistance

Steel Bearing Shaft Support

Steel Bearing Shaft Support

Heavy Duty Wall Mounting Bracket

Heavy Duty Wall Mounting Bracket

Reduced drive chain hoist for doors >10' wide or >10' tall

Reduced drive chain hoist for doors >10' wide or >10' tall

Made in the USA

Made in the USA

Wind Load

Wind Load

LEED

LEED

Environmental Assurance

Amarr garage doors are CFC, HFC, HCFC free, have zero Ozone Depletion Potential (ODP), zero Global Warming Potential (GWP) and comply with environmental laws and regulations.

Material options
  • Galvanized Steel
  • Operations Options

    • Chain Hoist

      Chain Hoist

    • Electric Operator

      Electric Operator

Color Options

  • High Gloss White

  • Satin White

  • Silhouette Gray

  • Light Stone

  • Sandstone

  • Desert Sand

  • Desert Tan

  • Continental Brown

  • Bronze

  • Cedar Red

  • Forest Green

  • Galvalume*

  • Safety Yellow*

  • LS Yellow*

  • Sunset Orange*

  • Tangerine*

  • Sierra Sunset*

  • Valentine Red*

  • Patriot Red*

  • Maroon*

  • GS Green*

  • EXR Wasabi*

  • Apple Lime Cocktail*

  • GS Blue*

  • Smart Blue*

  • Polar Blue*

  • Colony Green*

  • Fern Green*

  • Evergreen*

  • Teal*

  • Marine Green*

  • Dark Teal*

  • Royal Blue*

  • Ultra Marine Blue*

  • Frend Oak*

*Price upcharge applies
